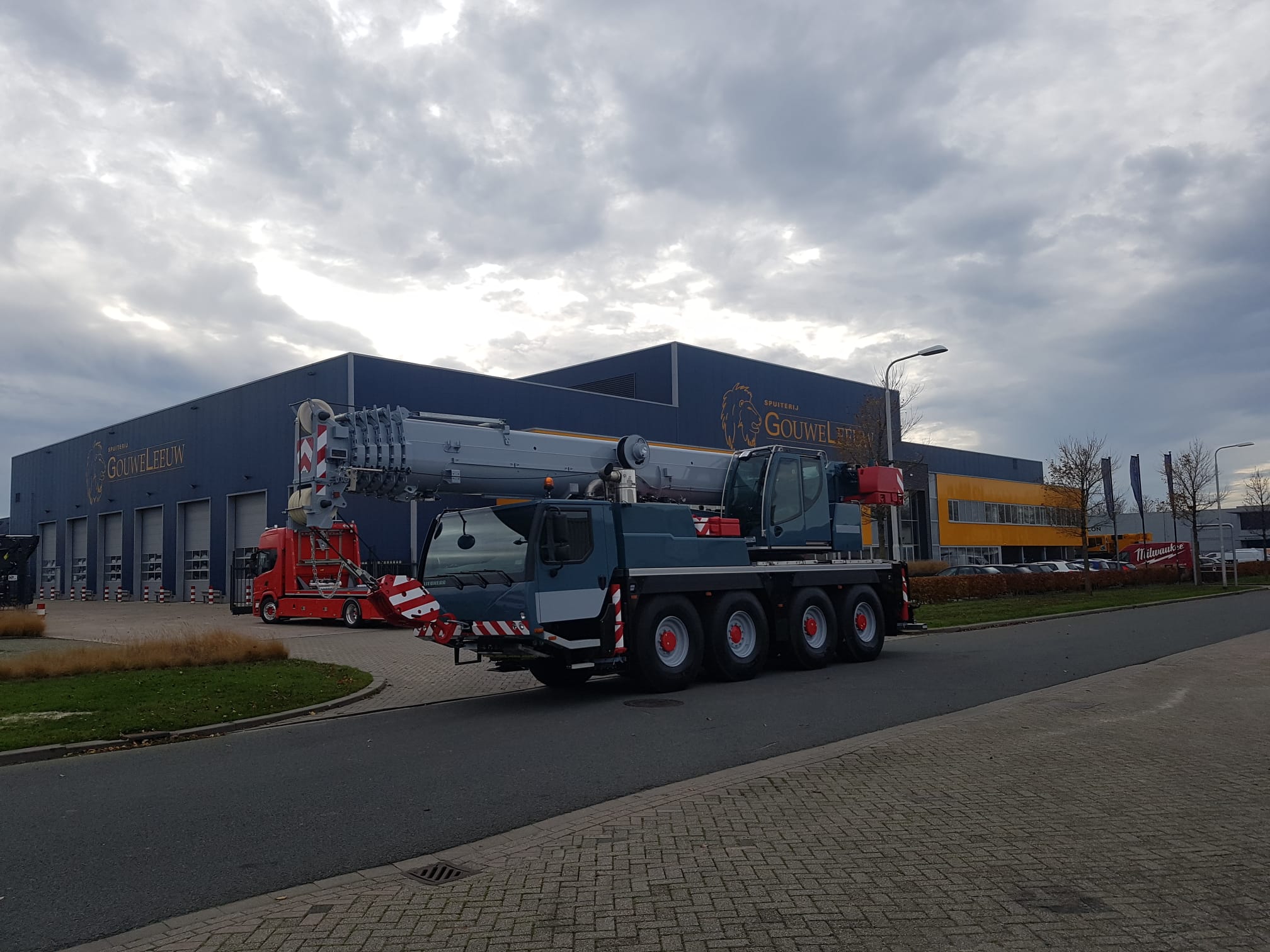

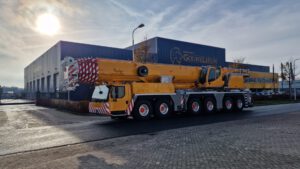

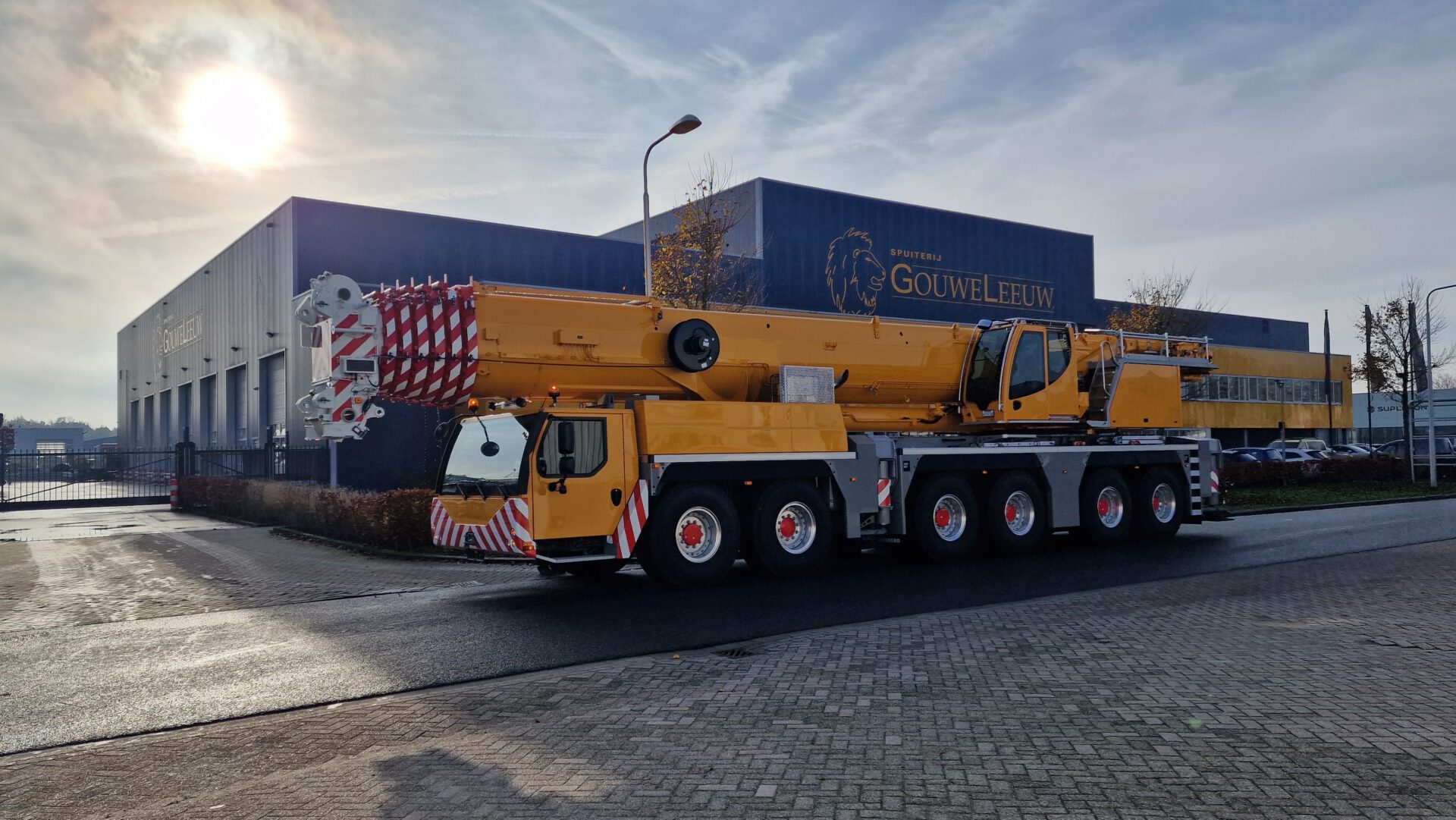

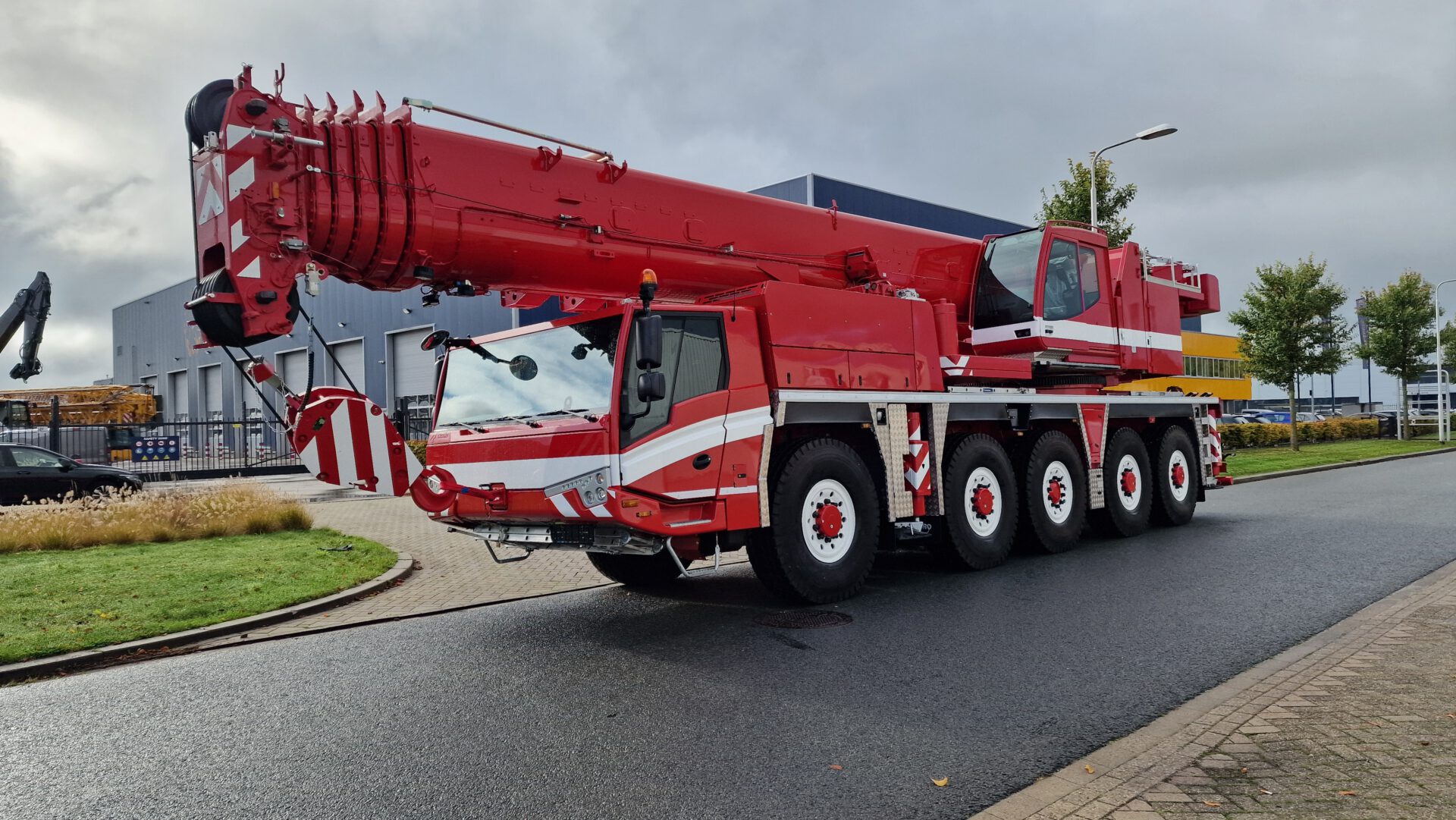

Gouweleeuw is an expert in the field of painting vertical transport equipment. For example, we paint mobile cranes, crawler cranes, tower cranes and associated boom parts.

Painting cranes is a profession in itself and as an experienced crane painter we understand that! Because the basic machine and the equipment are separated from each other at the start of work and only come together again after the painting process, we are able to deliver machines that meet high quality standards. Our building is fully adapted to the painting of large and heavy equipment such as cranes. For example, we have a special 35-meter mast hall, where mast sections can be extended. This way we can paint cranes completely.

Painting a crane takes an average of 12 working days with us. Because all processes take place under roof and we have our own means of transport (equipped for very heavy transport, among other things), we can realize an efficient process flow for all our painting work.

In addition to the Dutch crane importers, dealers and many end users, our customer base includes crane manufacturers Liebherr, TadanoFaun, TadanoDemag, Manitowoc, Spierings, and Kobelco. For these clients we paint mobile and crawler cranes in all sizes that are delivered all over the world.



Painting of large cranes

No job is too big for us! Thanks to the conversions of the past year, we can paint the largest cranes in our building. Using 2 overhead cranes (with a lifting capacity of 50 tons) in combination with our heavy forklifts and other means of transport, we are able to paint cranes above 1,000 tons.

For our customer Wind1000 we painted a Liebherr LG1750. The machine was exposed to severe weather conditions, resulting in rust. The entire renovation project took place in just 20 working days for a job consisting of:

  • Basic machine of 96 tons
  • 200 meters of boom sections
  • 20 pieces of counterweight (total weight > 245 tons)
  • and other associated components
Painting of large cranes
Painting of large cranes
Metallic crane painting
Metallic crane painting

Metallic crane painting

Spraying metallic colours on a crane requires a different preparation and spraying process compared to spraying a “normal”/non-metallic colour.

Preparation for metallic paint

Before spraying a metallic paint, sanding is done with a fine grain coarseness during the preparation. Sanding must also be done more carefully, which takes more time. When sanding with a coarse grain, sanding scratches can remain visible through the metallic paint.

Spraying metallic paint

Spraying metallic paints requires the utmost attention. It is very important that the metal particles incorporated in the paint are in the right direction. If this is not done, there will be a colour difference. Since cranes are sprayed in parts, all metal particles from the different parts must be in the same direction. This colour difference is most noticeable when spraying a silver metallic paint. Air pressure differences during spraying can also result in colour differences. Spraying with half a bar more or less can cause the metal particles to lie at a different angle, which gives a completely different result in terms of colour.



Refinishing used cranes

By order of Spierings Mobiele Kranen (Oss – NL) we refinish cranes.
For example, for Spierings we repainted a SK2400-AT7 for their client Jinert, located in Sweden. Spierings delivered the crane with accompanying parts to us, after which we painted the machine and components according to the high quality standards of Spierings and Jinert. After the paintwork was done, the crane was returned to Spierings, who then rebuilt the crane for transport to Sweden.


Refinishing used cranes
Refinishing used cranes
Available 24/7

Contact us!

Short lead times

Safe and careful

Available 24/7

Full service paintshop

  • Disassembly
    Each treatment starts with the disassembly of the machine. Large and heavy parts as well as small parts, whether or not equipped with electronics or hydraulics, are disassembled separately.
    Read more
  • Cleaning
    Each part is thoroughly cleaned by means of various cleaning techniques in combination with specific degreasers.
    Read more
  • Repairs
    Is your object damaged? Or does it have a technical malfunction? Not to worry, our technicians will fix it.
    Read more
    • Preparation
      This process is one of the most time consuming and important processes.
      Read more
  • Blasting
    Blasting is a very effective way to remove rust. We blast with the help of a blasting robot that makes the heavy blasting work lighter.
    Read more
  • Flame galvanising
    Flame galvanising is the application of a zinc-aluminium layer on steel.
    Read more
  • Coating
    Immediately after blasting, a chromate-free two-component epoxy primer-surfacer is applied, which guarantees good protection against rust formation.
    Read more
  • Painting
    After preparation, a chromate-free two-component epoxy primer-surfacer is applied, which guarantees good protection against rust formation.
    Read more
  • Assembly
    During the assembly process, all parts are professionally mounted on the object.
    Read more
  • Lettering
    As a result of extensive experience in the field of decals, each object is provided with the desired corporate image.
    Read more
  • Finishing Touch
    Your machine is ready to be returned to you. But first the finishing touch:
